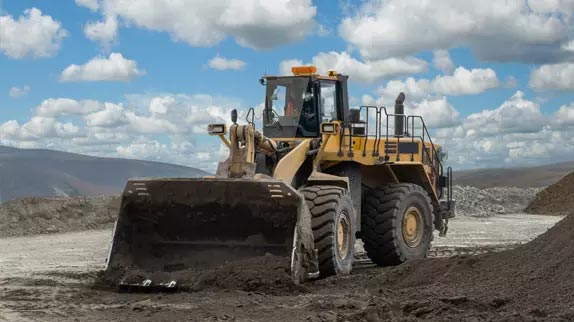

Trimble Earthworks Grade Control Platform for Wheel Loaders empowers operators of all skill levels to work faster, smarter, and more profitably. By integrating precise 3D bucket positioning with intuitive, Android-based software, Trimble brings its trusted technology to medium and large wheel loaders (10 tons and up).

Dual GNSS enables real-time position and heading of the bucket in 3D, allowing quick, accurate execution of complex tasks and slope finishes. Front and rear wheel mapping deliver a wide surface profile, ensuring precise ground surface data for better volume analysis and smarter machine utilization.

Whether you’re cutting to grade or managing material more efficiently, SITECH Tejas and Trimble Earthworks gives you the tools to streamline your workflow and reduce wasted time on the jobsite.

Work Faster & Smarter

Gain more information from another machine in your operation and give operators of all skill levels the ability to work faster and more productively than ever before with Trimble Earthworks Grade Control Platform for Wheel Loaders.

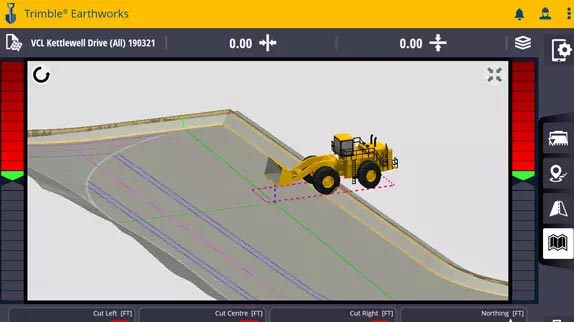

Trimble Earthworks Software

The trusted and reliable Trimble Earthworks now includes support for wheel loaders, providing an intuitive and easy-to-learn grade control application that runs on the Android operating system

Work Faster and More Profitably

Measure the precise 3D position of the bucket
Quickly perform complex tasks and simplify finishing slopes with accurate 3D positioning

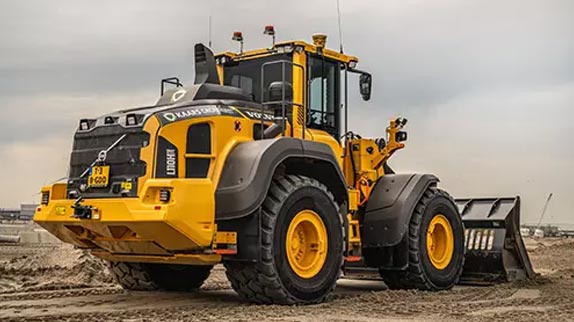

Supports medium to large wheel loaders (10 ton and up)
Configured with Dual GNSS for real-time position and heading of the bucket in 3D

Faster Machine Mapping

Front and rear wheel mapping provide the widest possible surface area for accurate, up-to-date existing ground surface. Analyze volumes to make better decisions that optimize machine utilization and waste less hours.

3D Grade Control for Wheel Loaders

Smarter, faster and more accurate grading, with standard Connected Site functionality to bring the office and the machine together for increased efficiency.

Bulk Earthworks

Display design information and live cut/fill indications in the cab
Monitor avoidance zones with real-time information
Collect as-built data as the machine cuts to grade
Keep tighter control over safety issues
See precisely where dirt is being moved on site

Quarries and Stockpiles

Cut and maintain jobsite floors
Effectively manage stockpiles and load out
Get up-to-date elevations of the existing plant site surface

Grading

Determine the position of each tip of the bucket and compare it to the design elevation to compute cut or fill to grade
Adjust the machine’s response to differing material conditions
Optimize the machine’s performance for a particular grading task

Trimble Earthworks App Downloads

Trimble File Flipper
A software application that simplifies the process of converting and transferring design files between different Trimble machine control systems (GCS900 and Earthworks). For Android and Windows operating systems.

Trimble Connect
A platform that enables project teams to collaborate and share data, including design, documentation, and field reports, more seamlessly.
For Android and Windows operating systems.
