Solutions | Construction Surveying | SiteVision

A user-friendly augmented reality system used for communicating new designs and changes to field crews, inspections, determining productivity and calculating quick measurements on site including points, lines and cut/fill values.

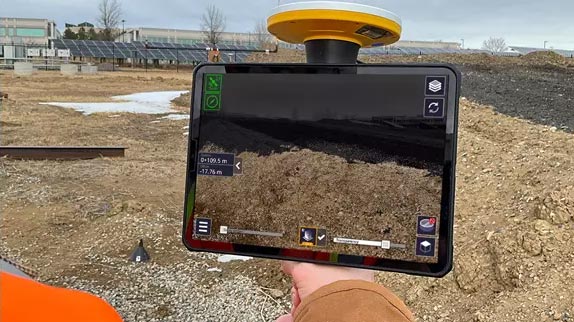

Visualize Data in the Field

Trimble SiteVision Software brings spatial data to life in real-world environments so you can easily visualize, explore and understand complex designs—right on your own mobile device.SiteVision plays a key role in all stages of the construction lifecycle: planning and initial visualization, checking progress and preventing issues during construction to reduce cost and time, completion and maintenance.

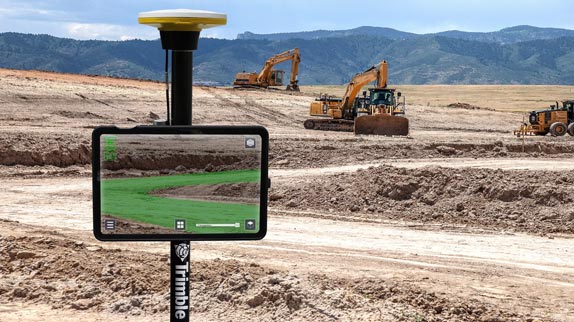

In Context, On Site

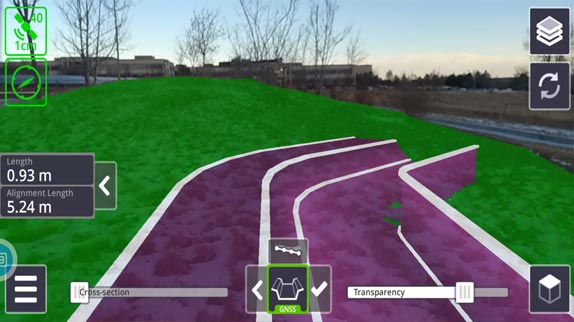

Visualize the design in the field to see how the plan will affect the surrounding environment
Based on color graduations, virtually overlay cut/fill maps, pass count maps, density or any other sampling technique to see the plan in context
Centimeter-level accuracy gives you the confidence to make measurements, calculations and decisions on the spot
Plan and visualize onsite progress, inspect completed work, complete quality management and identify issues using built-in issue tracking and reporting to reduce costs and time

Simpler Scanning

Gain the power of scanning in a simpler, faster and more cost-effective mobile solution
Work faster by scanning on the move and obtain accurately georeferenced points that are exported directly to Trimble Connect
Only available with certain LiDAR-equipped devices

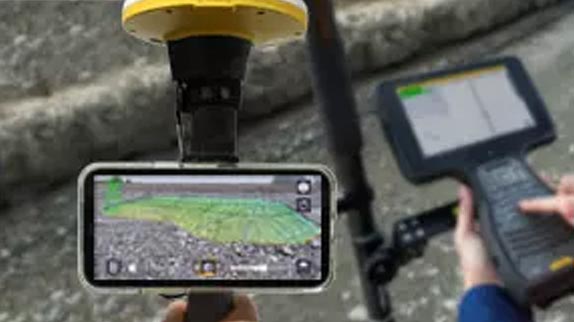

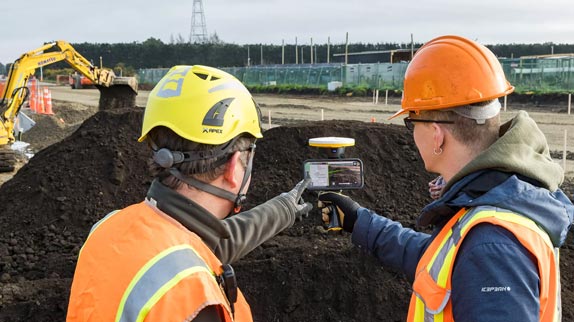

Communicate and Collaborate

Real-time reporting from the field to the office eliminates delays and avoids rework
Share, communicate and collectively interact in real time with easy to understand visualizations to efficiently collaborate with people of all skill levels
Streamline data with feature codes that label items, saving time and keeping data consistent

Increase Efficiency

Easily understand complex information to quickly take action
Take photos, measurements and notes in the field for accurate and up-to-date reporting, create tasks and assign them to team members
Leverage data from Trimble solutions to maximize your investment (Trimble Business Center, Trimble Stratus, Trimble Site Positioning Systems and more)

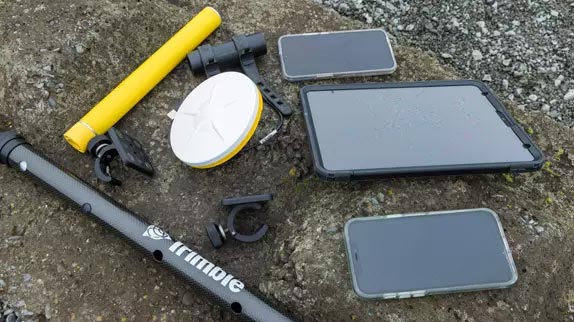

Utilize Your Existing Equipment

Transform your own phone or tablet into a powerful multi-purpose tool with the addition of the low cost Trimble DA2 GNSS Smart Antenna
Use your existing batteries with the interchangeable USB-powered system to work longer in the field
Deploy the DA2 receiver elsewhere in your operations for an even faster return on investment

SiteVision Mobile

SiteVision Mobile is a fully-featured, lower-cost SiteVision subscription option
Available worldwide to contractors with the Trimble Works or Works Plus Subscription – Siteworks Precise Rover Bundle

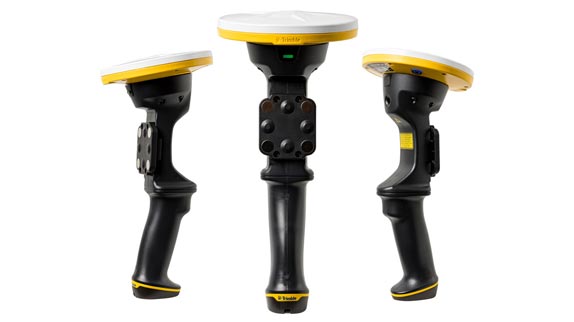

Trimble HPS2

Designed for easy and convenient interaction with AR information in the field.

Lightweight and portable handheld unit
Includes a built-in DA2 receiver for powerful processing
Easily attach any mobile phone with the magnetic mount (Android or Apple)
Built-in battery and Bluetooth connection for cable free operation
Integrated Electronic Distance Measurement (EDM) to take accurate measurements on the spot

The HPS2 handle is extremely easy to set up. Simply attach the magnet to the back of your phone and camera offsets are instantly calculated through the new and automatic EDM calibration process.
