TDC6 Handheld Data Collector

Solutions | Construction Surveying | TDC6 Handheld Data Collector

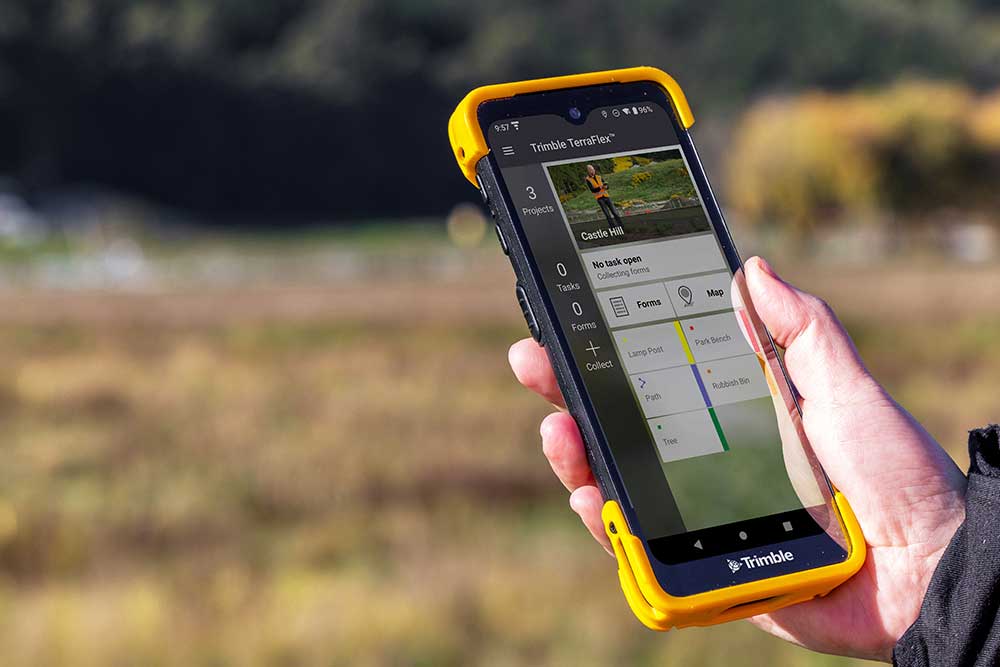

The easy-to-use Trimble TDC6 Handheld Data Collector allows contractors to work with more complex 3D data sets more effectively in the field, connect to the office for on-the-spot approvals and communicate changes to field crews.

Features and Benefits

Patented Trimble technology ensures you’re getting the best performance on jobs that require the tightest precision with the fastest update rate available today.

One Device, Multiple Applications

Visualize your site with Trimble SiteVision Software and work seamlessly with Trimble Siteworks Software on the same device

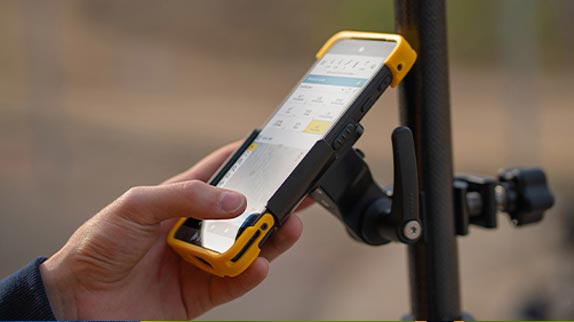

Use with the Trimble Siteworks Machine Guidance Module as a compact and powerful data collector

High Performance Construction Surveying in Your Hand

Connect your office to the construction site with this cost-effective solution to enhance field communications
Lightweight and compact design, that fits easily into a pocket
Long-life, all-day battery ensures hours of use in the field

Fully-Functional Field Device

Stay connected and work faster by making design changes in the field, and instantly communicating changes or problems to field crews and the office
Synchronize data from the site to eliminate delays associated with driving data updates to and from the office and field
Fast and powerful 2.7 GHz processor with 6GB RAM and 64GB internal storage
Android™ operating system

Rugged and Reliable

Built to stand up to any construction site, in any weather
Read text, graphics and complex maps under any field conditions, even bright sunlight
Work longer with the large capacity, field replaceable all‑day battery

Have Questions or Need More Info?

We have knowledgable experts standing by to answer your questions and provide any information you need.

Find out how we can benefit your company today!

TDC6 Handheld Data Collector Downloads

Trimble Civil Construction Software and Firmware Versions
Current Trimble Civil Construction Software and Firmware Versions.

Trimble TDC6 Data Collector Documentation
User and quick start guides

Applications

Use the TDC6 with Trimble Siteworks Software & a Trimble GNSS Receiver for:

Measuring and verifying original ground levels and site features
Monitoring real-time cut/fill information
Checking finished grade and laid material thickness against design elevations and tolerances
Computing progress and material stockpile volumes
Monitoring, and conducting quality control for earthworks and paving operations
Assessing as-built measurements and generating high quality reports for record keeping, approvals and payments
Synchronizing design and field data via the internet

Use the same TDC6 with other applications

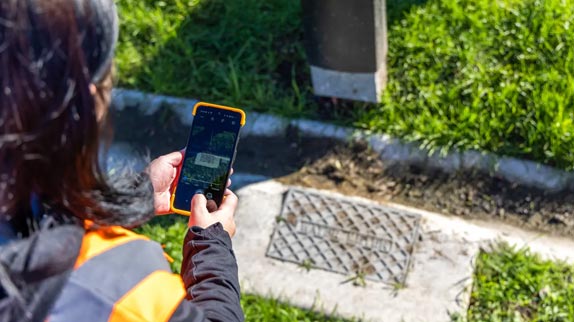

Visualize your site and easily check progress with Trimble SiteVision Software,
an augmented reality solution
With the Trimble Siteworks Machine Guidance Module the TDC6 becomes a display for machine guidance
